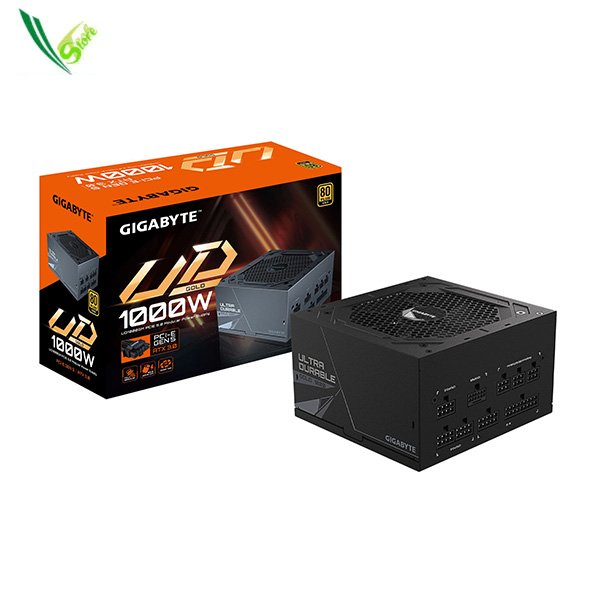

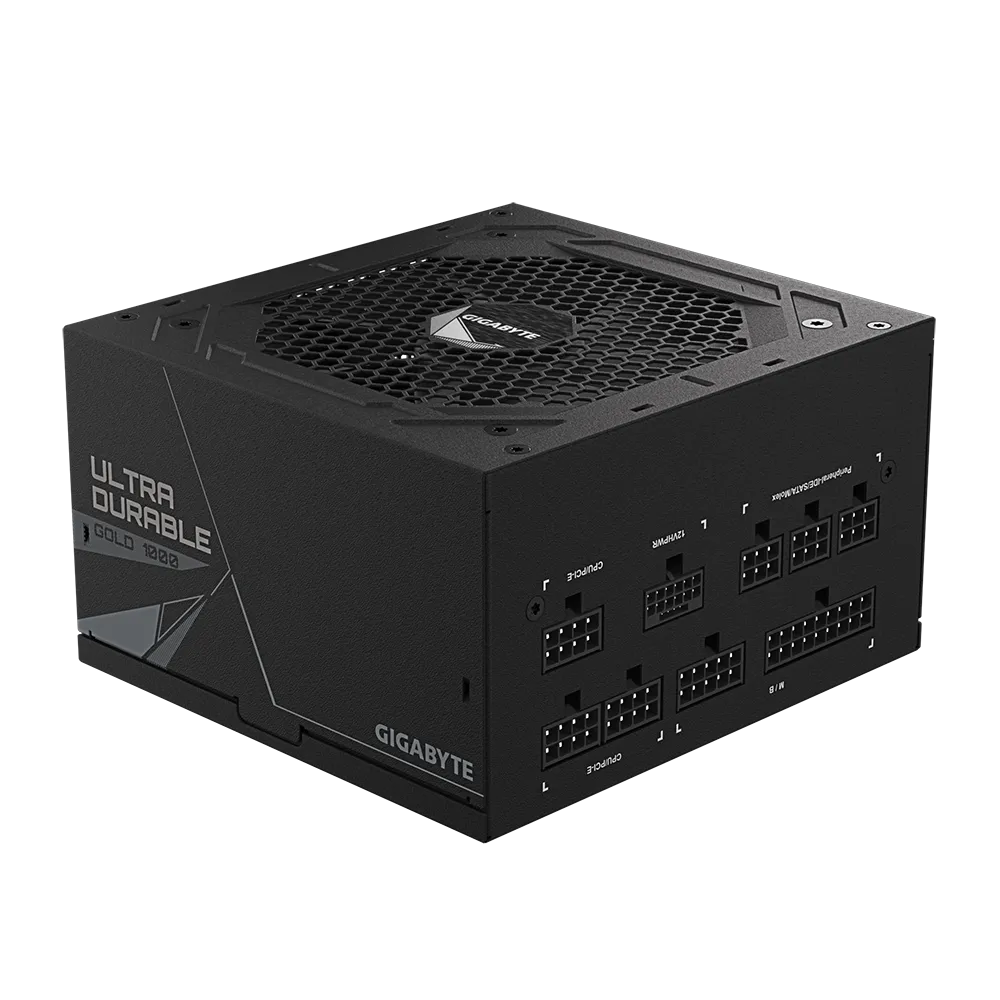

GIGABYTE GP-UD1000GM PG5 80Plus Gold (Fully Modular)
$179,00
KEY FEATURE
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card

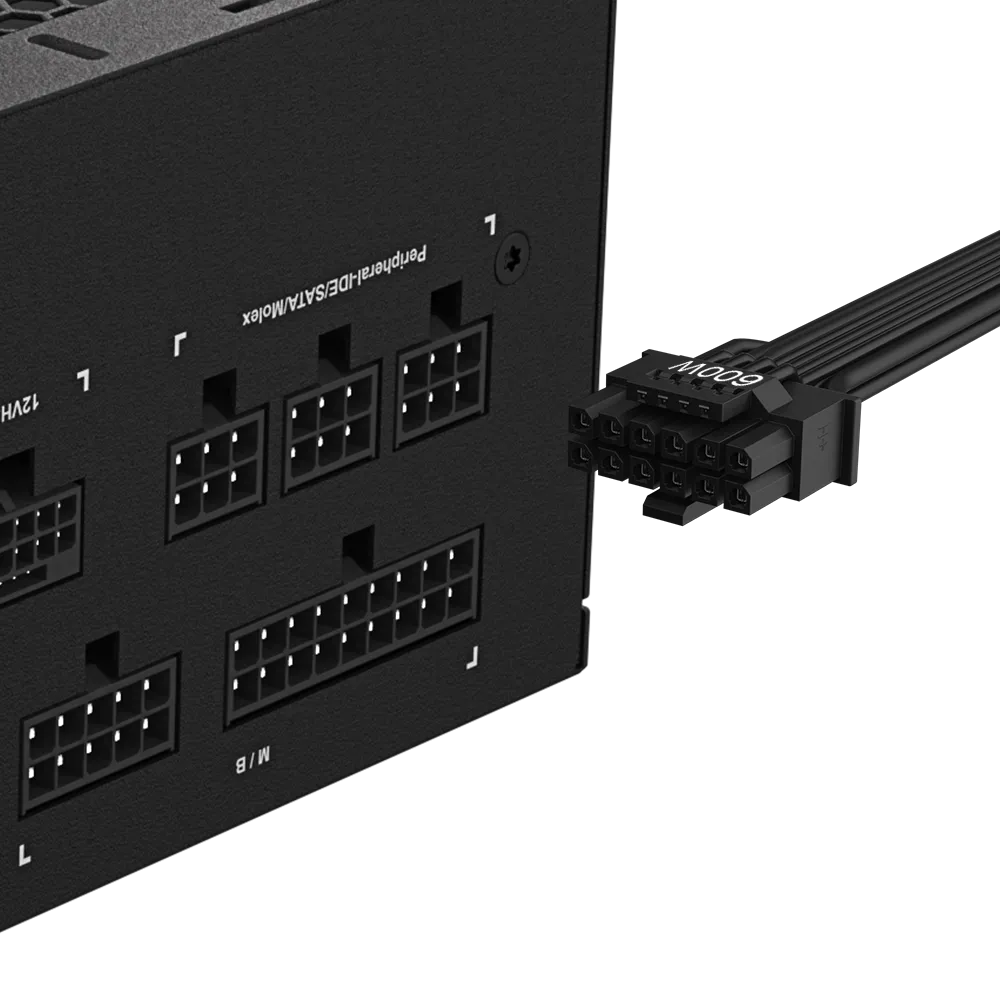

- High-quality native 16-pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty (Adjusted according to different regions)
-
-

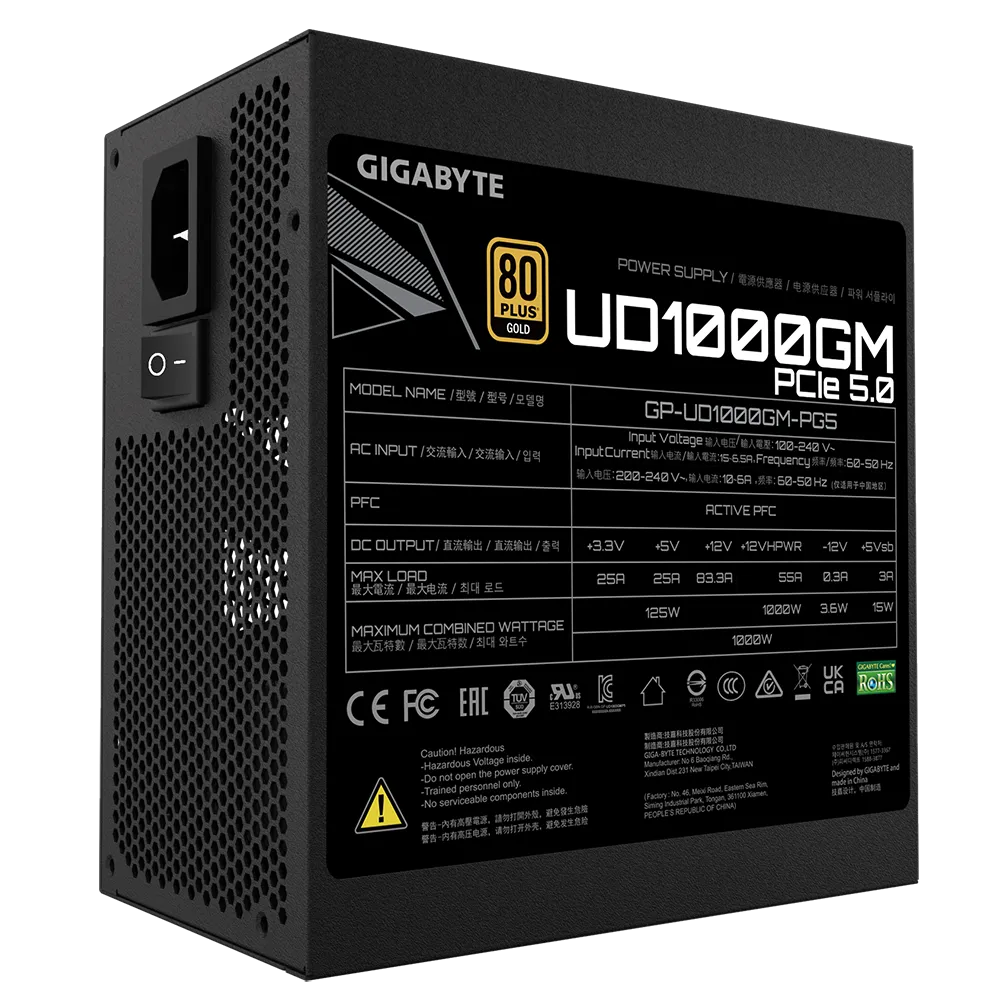

ModelGP-UD1000GM PG5
-
TypeIntel Form Factor ATX 12V
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current15-6.5A
-
Input Frequency60-50 Hz
-
Output Capacity1000W
-
Dimensions150 x 140 x 86 mm
-
Fan Type120mm Hydraulic Bearing(HYB)fan
-
80 PLUSGold
-
Efficiency90% at typical load
-
MTBF>100,000 hours
-
ProtectionsOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeFlat, All black
-

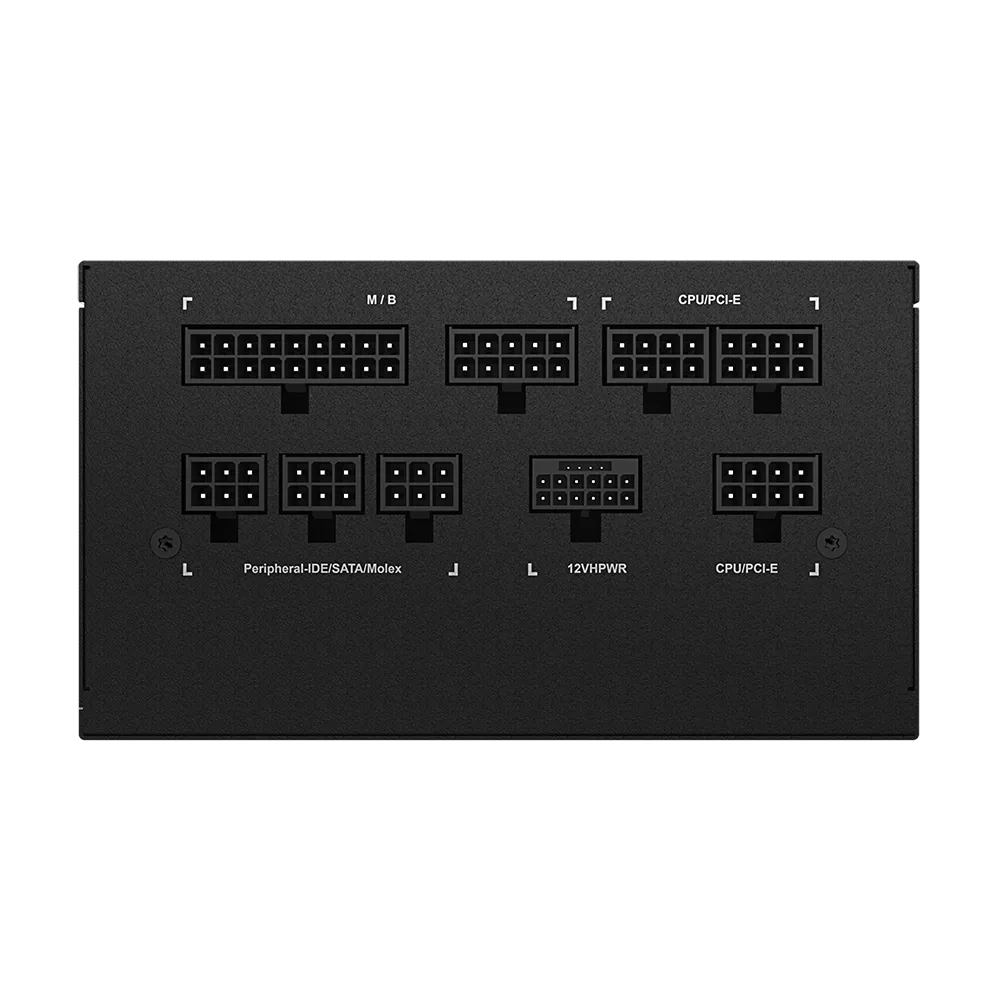

ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
-
