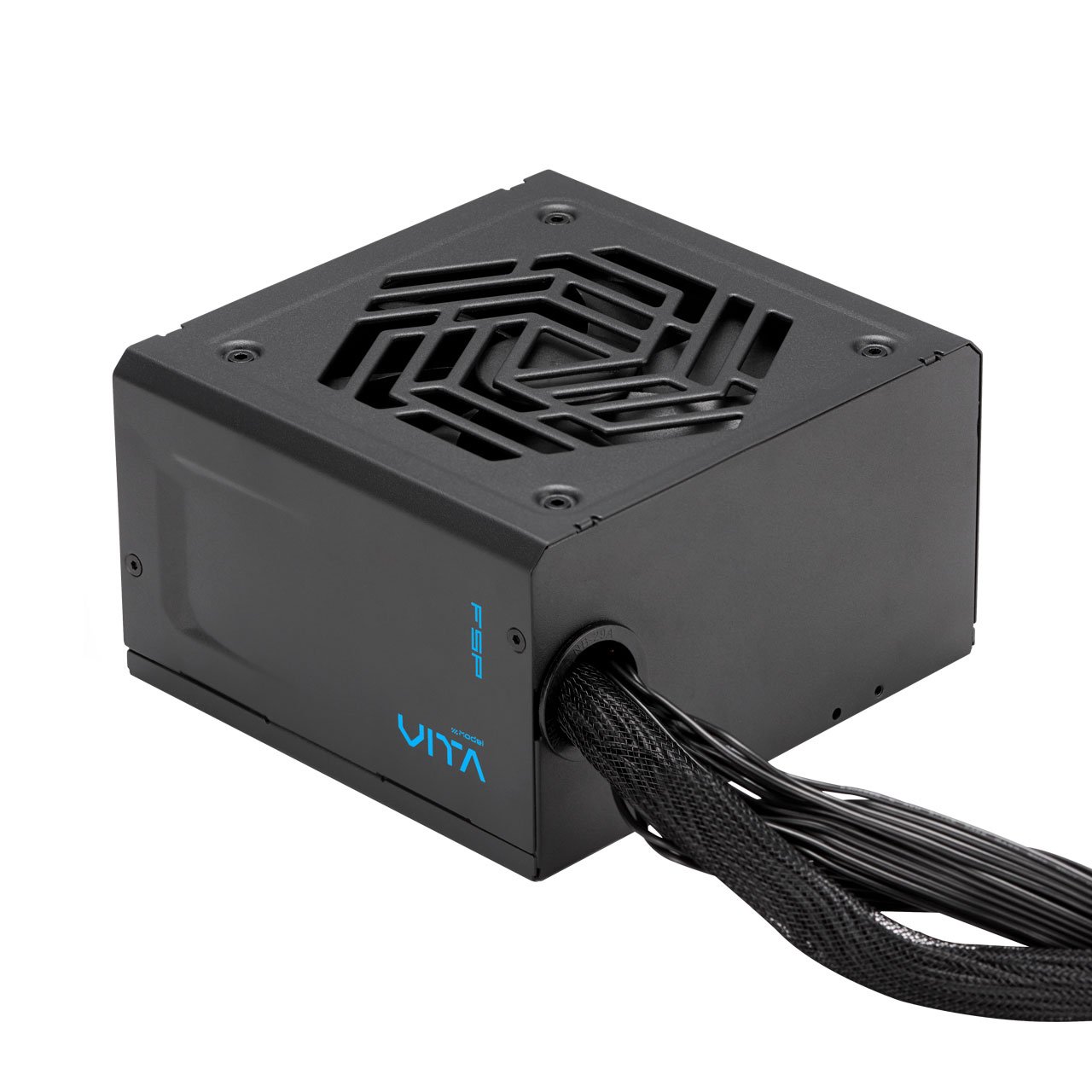

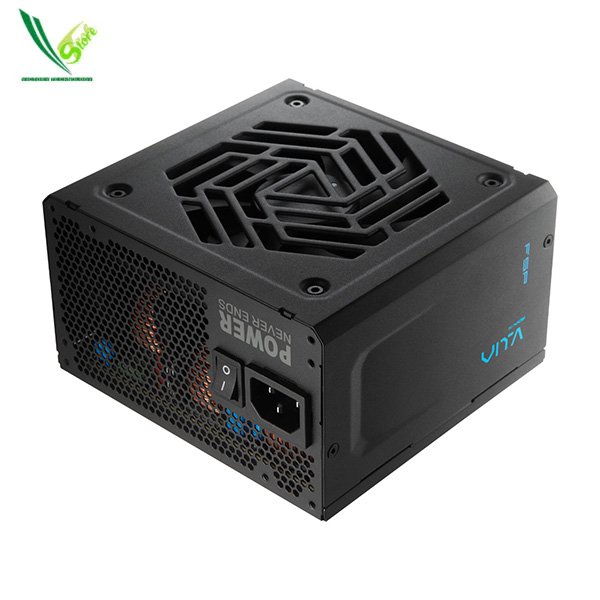

FSP VITA BD 750W 80PLUS BRONZE
$75,00
VITA BD 750W
PCIe 12V-2×6
- Efficiency ≧ 88% at typical load
- 80 PLUS ® 230V EU bronze certified
- Hold up time ≥ 12ms at 100% load
- Premium, all-black cables for easier cable routing
- Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
| Model | VITA-750BD |
|---|---|
| Rated Output Power | 750W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | 230V EU Bronze |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥88% at typical load |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions(L x W x H) | 140×150×86 mm |
| Operation Temp. | 40°C |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Warranty | 5 Years |
| AC Input | 200-240V~ 6A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 62.5A | 0.3A | 2.5A |
| Max Combined Power | 100W | 750W | 3.6W | 12.5W | |
| Total Power | 750W | ||||
